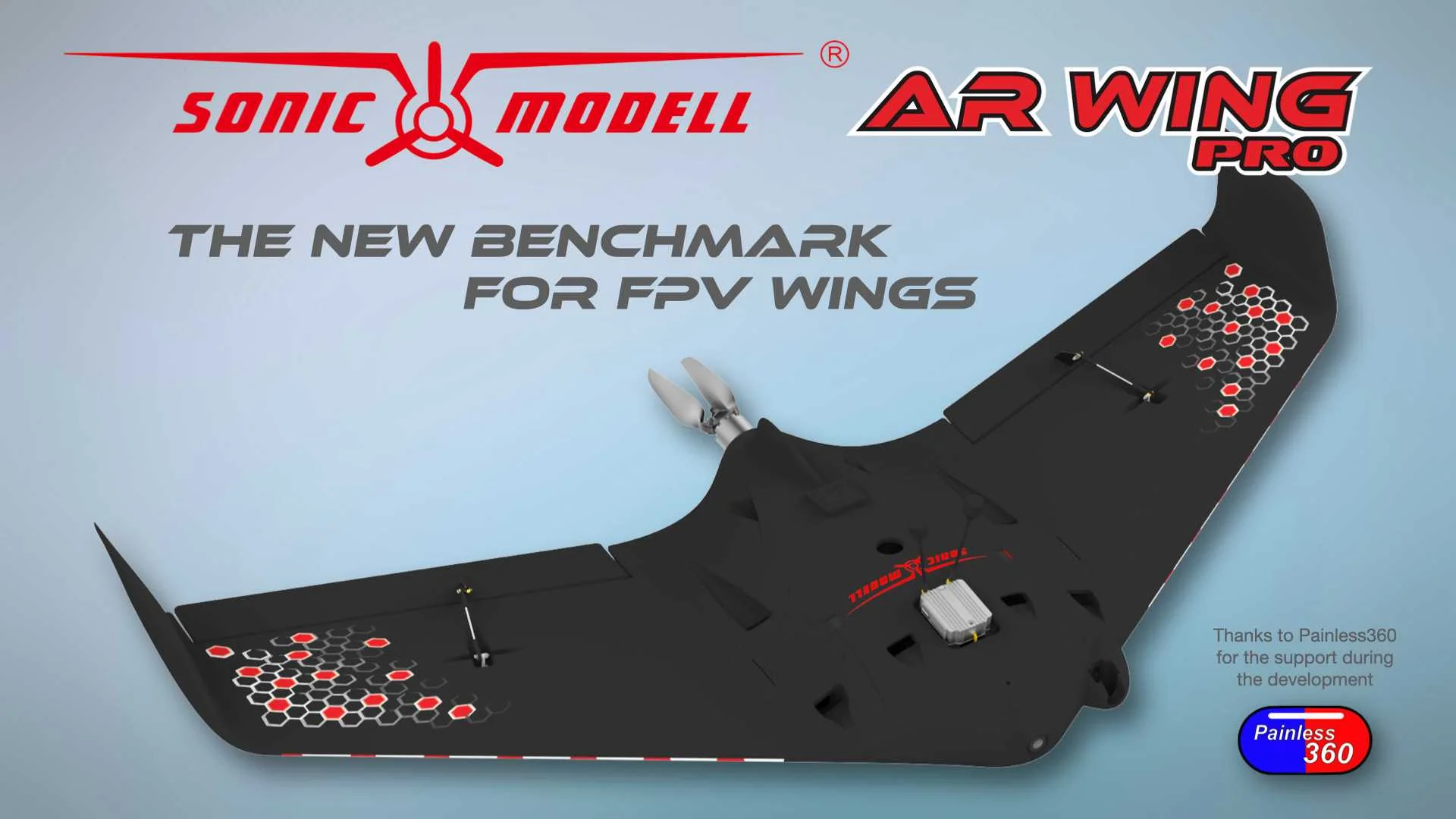

Beginner Electric AR Wing Pro RC Airplane Drone 1000mm Wingspan EPP FPV Flying Wing Model Building KIT/PNP Version

Description:

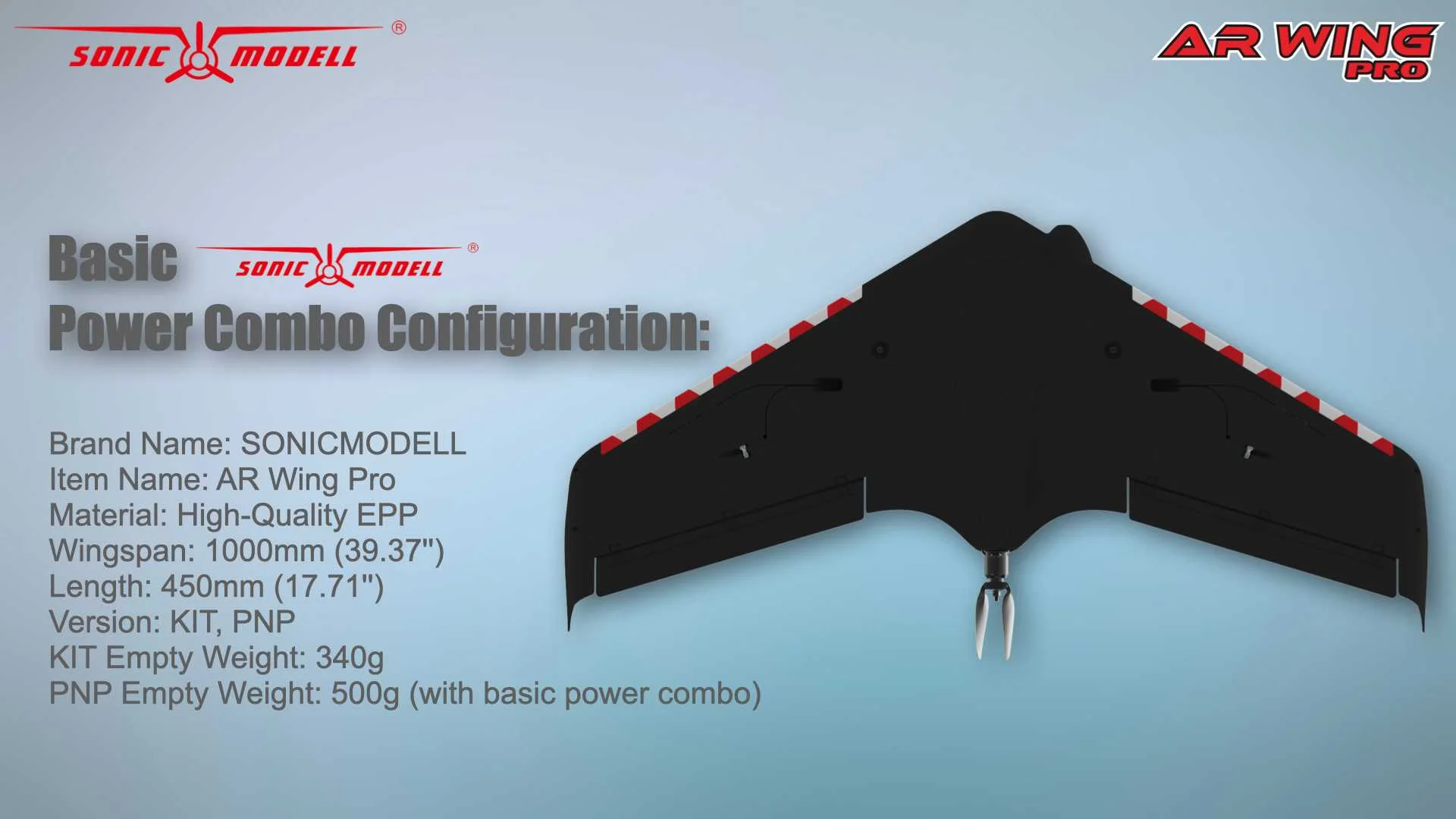

Item Name: AR Wing Pro

Material: High Quality EPP

Wingspan: 1000mm (39.37”)

Length: 450mm (17.71”)

Version: KIT, PNP(optional)

KIT Empty Weight: 340g

PNP Empty Weight: 500g

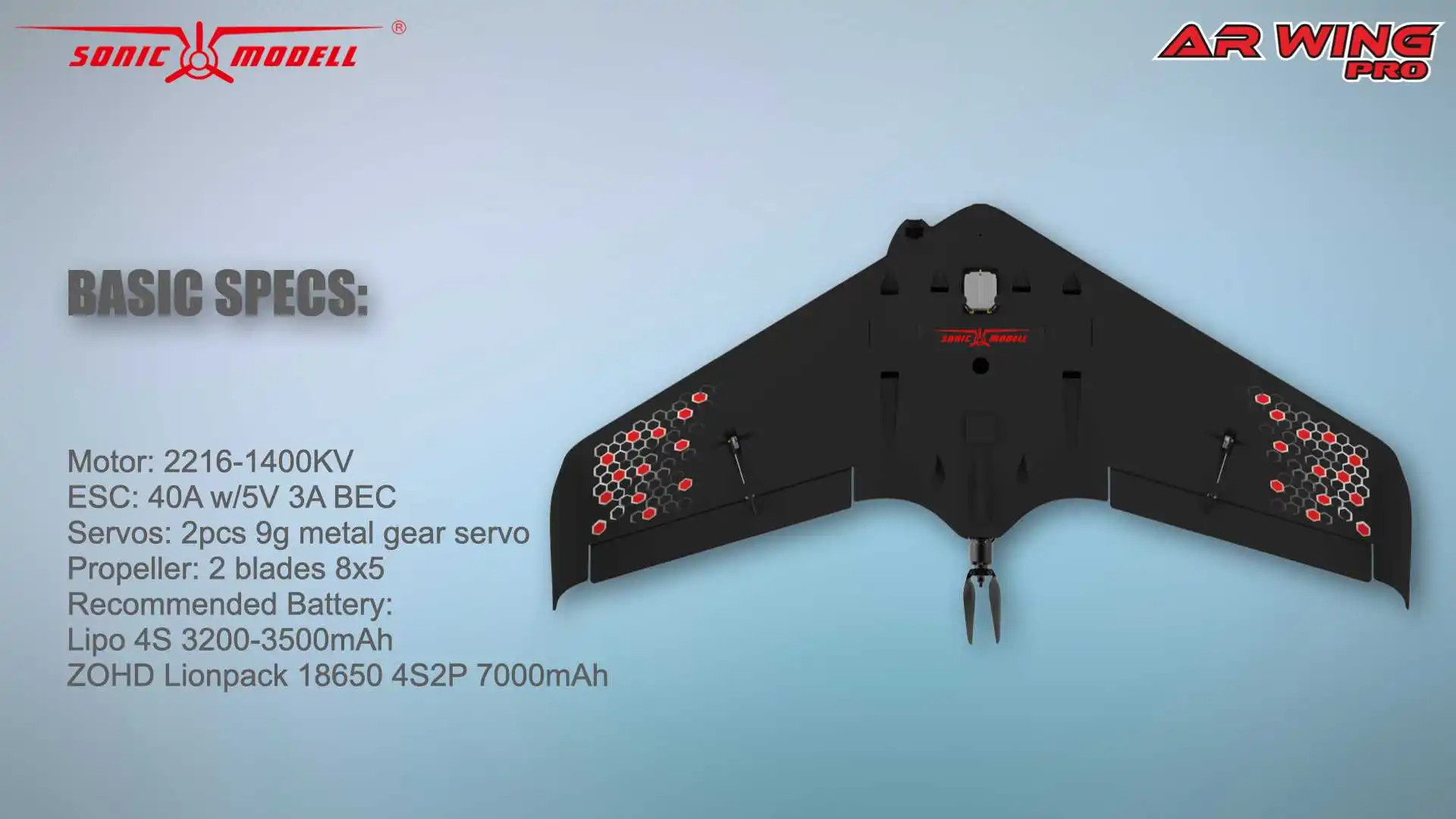

Recommended Sonicmodell Power Combo Configuration:

Motor: 2216-1400KV

ESC: 40A w/5V 3A BEC

Servos: 2pcs 9g metal gear servo

Propeller: 2 blades 8×5

Recommended Battery: 4S 3200-3500mAh Lipo, ZOHD Lionpack 18650 4S2P 7000mAh

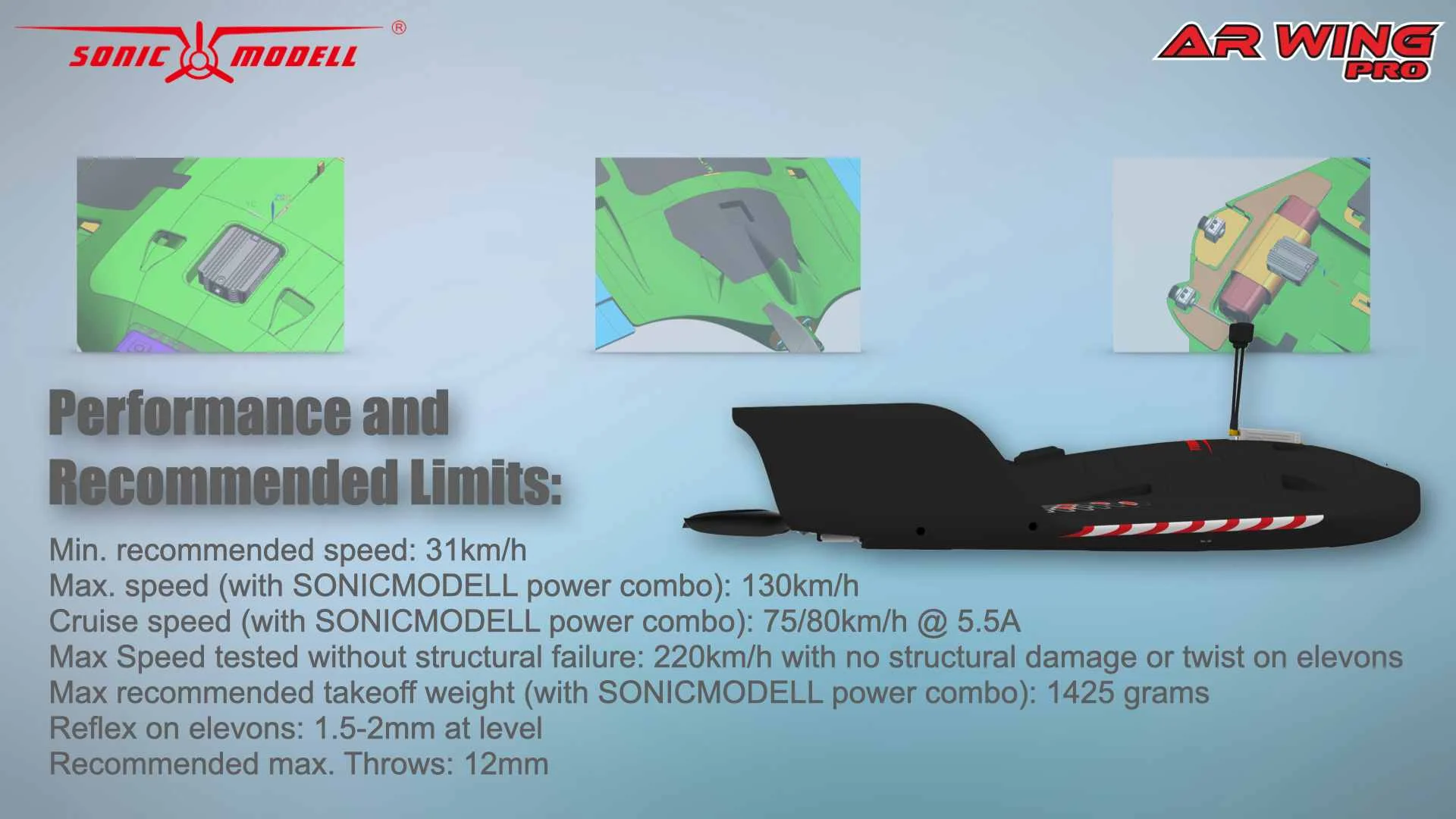

Recommended Flying Capability:

Min. recommended Speed: 31km/h

Max. Speed (with SM power combo): 130km/h

Cruise Speed (with Sonicmodell power combo): 75/80km/h @ 5.5A

Max. Speed Tested Without Structural Failure: 220km/h with no structural damage or twist on elevons

Max. Recommended Takeoff Weight (with SONICMODELL power combo): 1425 grams

Reflex On Elevons: 1.5-2mm at level

Recommended Max. Throws: 12mm

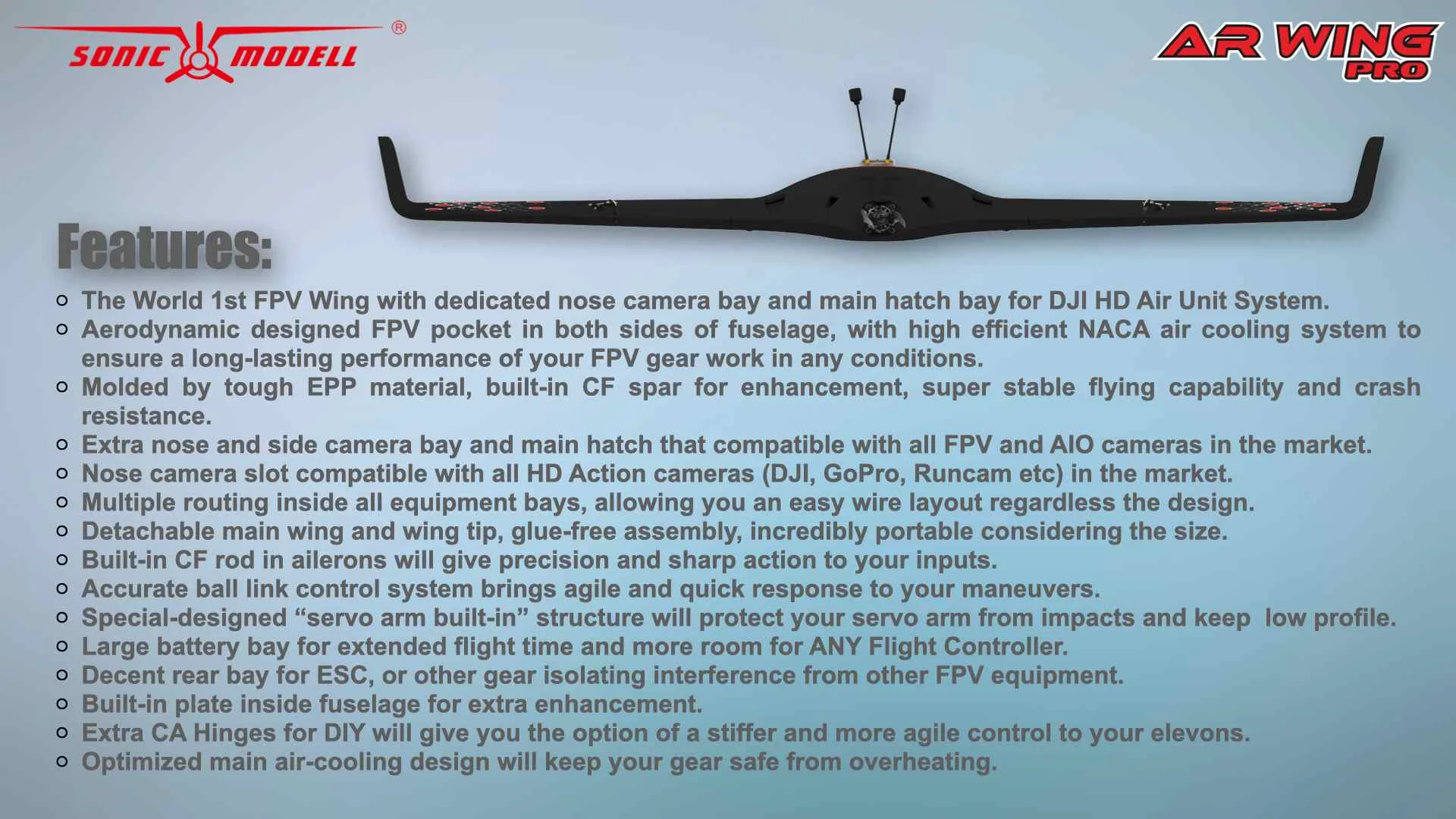

Features:

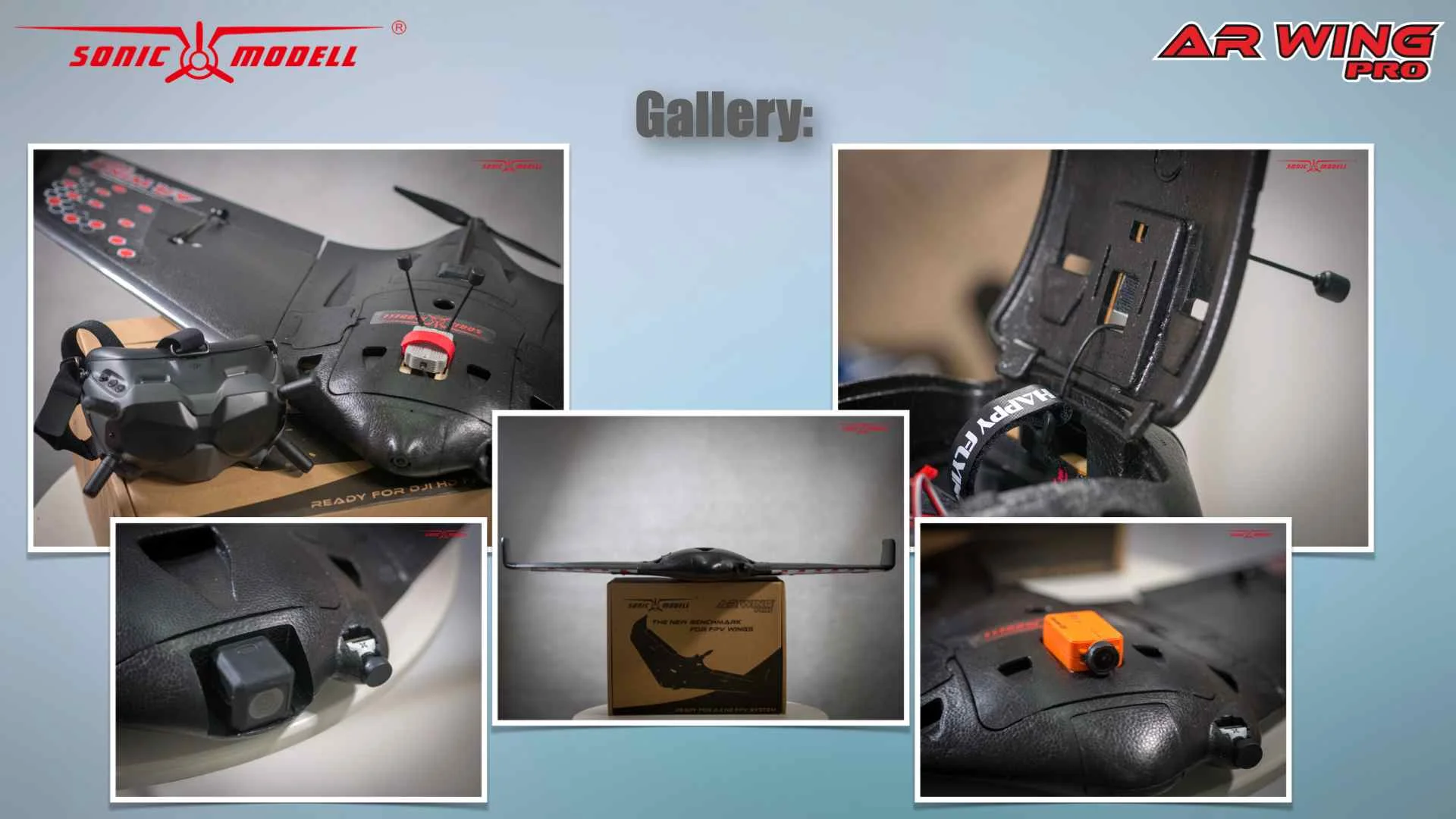

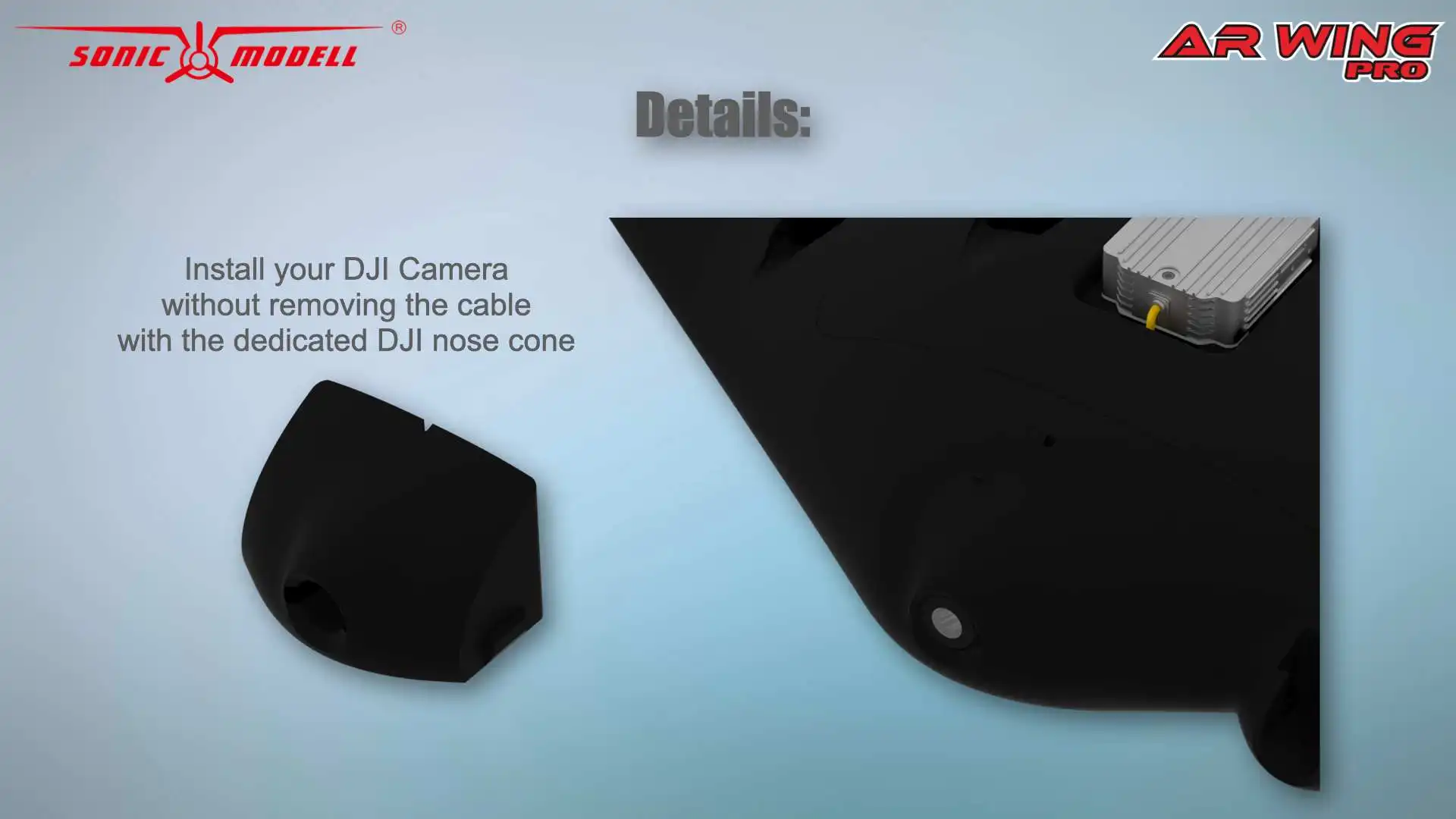

– The World 1st FPV Wing with dedicated nose camera bay and main hatch bay for DJI HD Air Unit System, no need any cut or DIY to fit the DJI System.

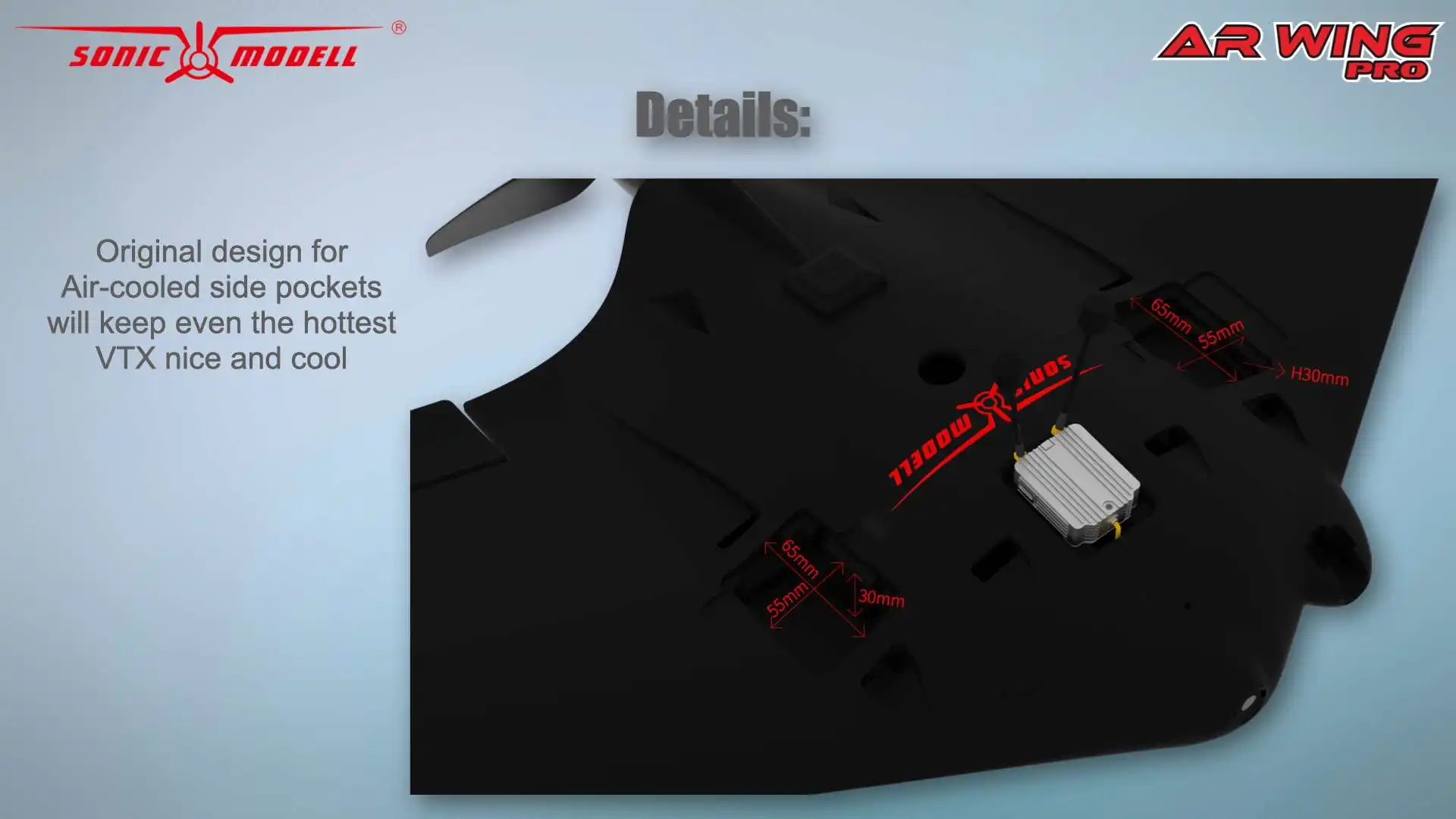

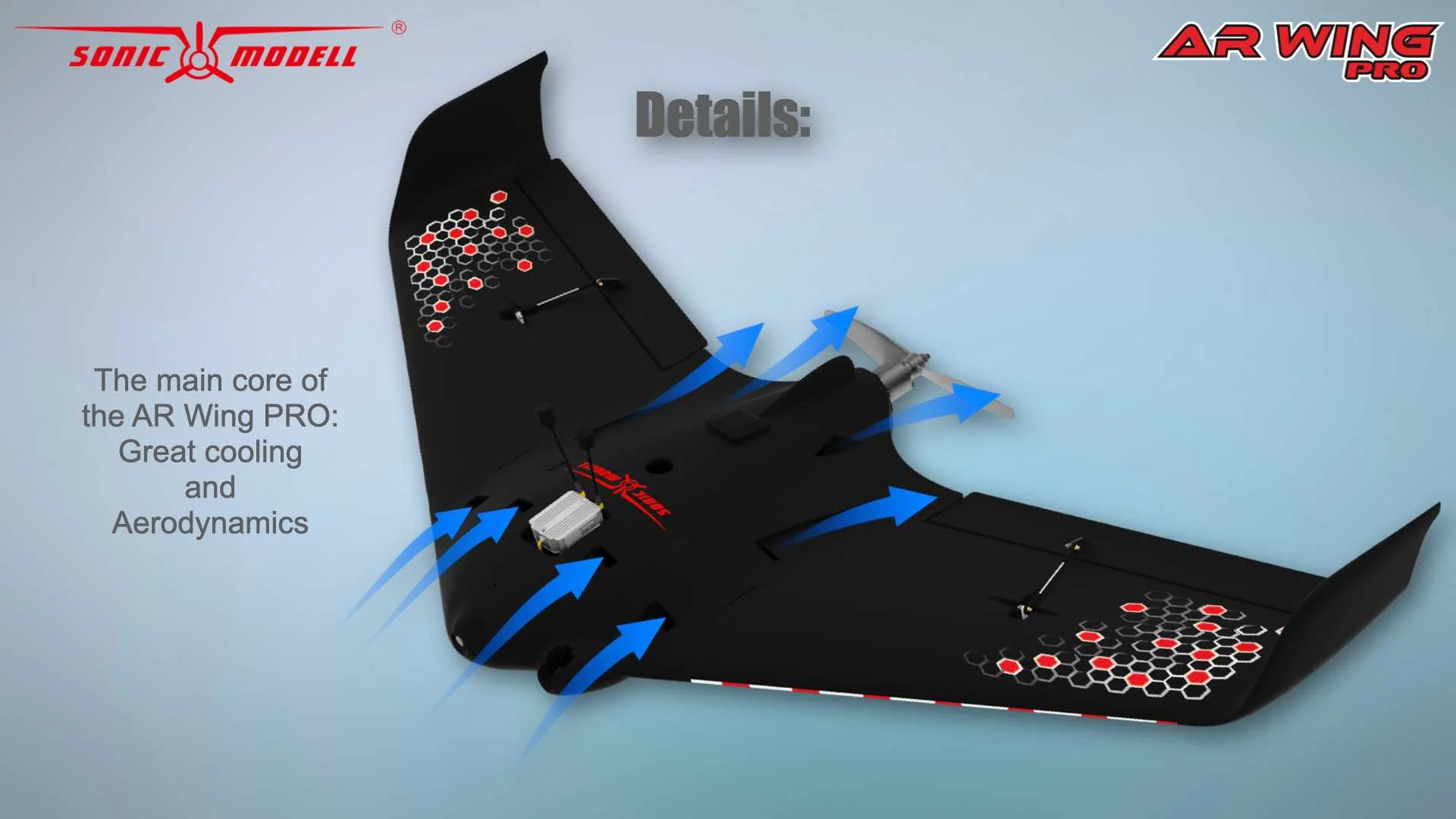

– Aerodynamic designed FPV pocket in both sides of fuselage, with high efficient NACA air cooling system to ensure the FPV gear work in perfect condition.

– Molded by tough EPP material, built-in CF spar for enhancement, super stable flying capability and crash resistance.

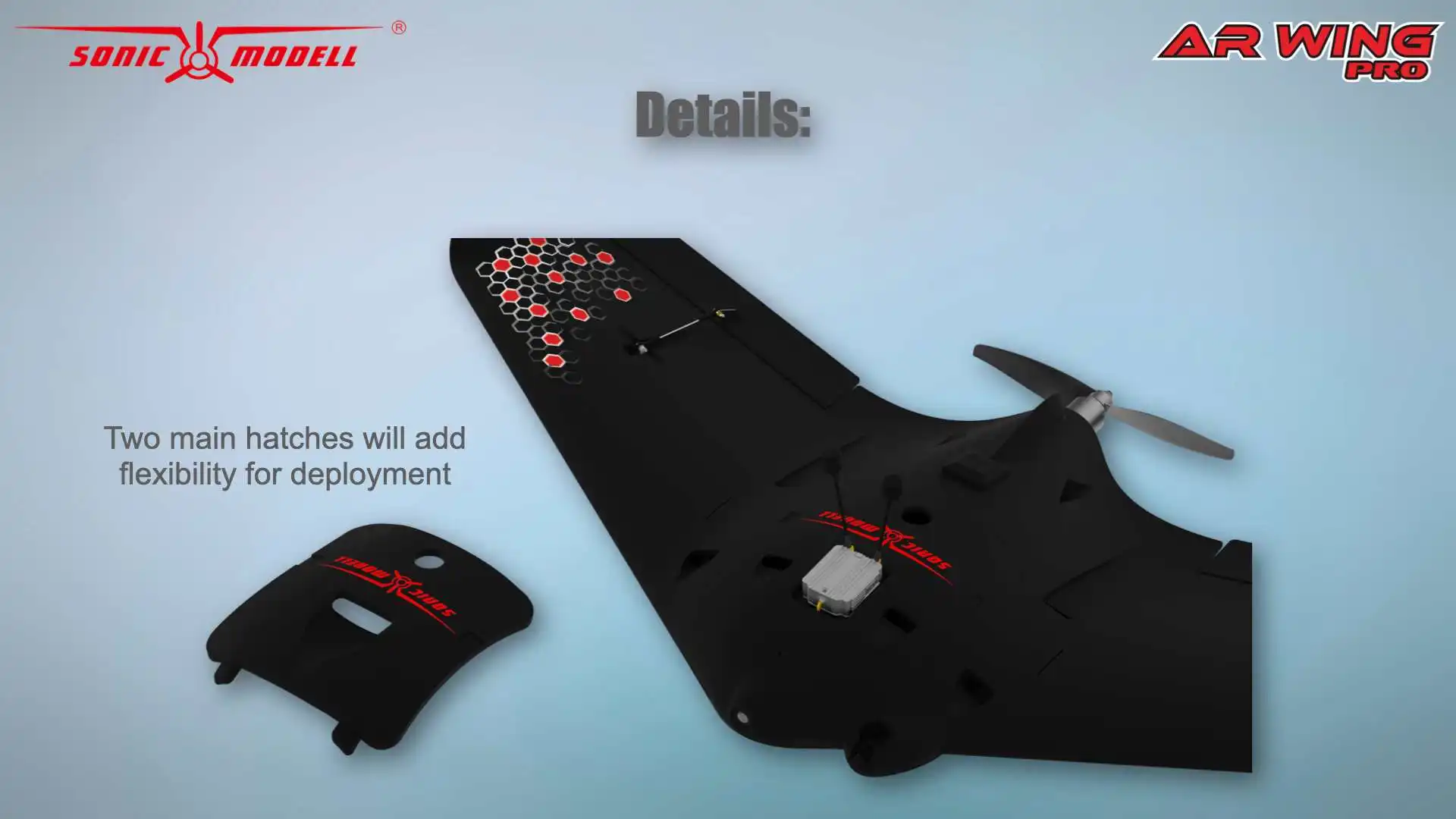

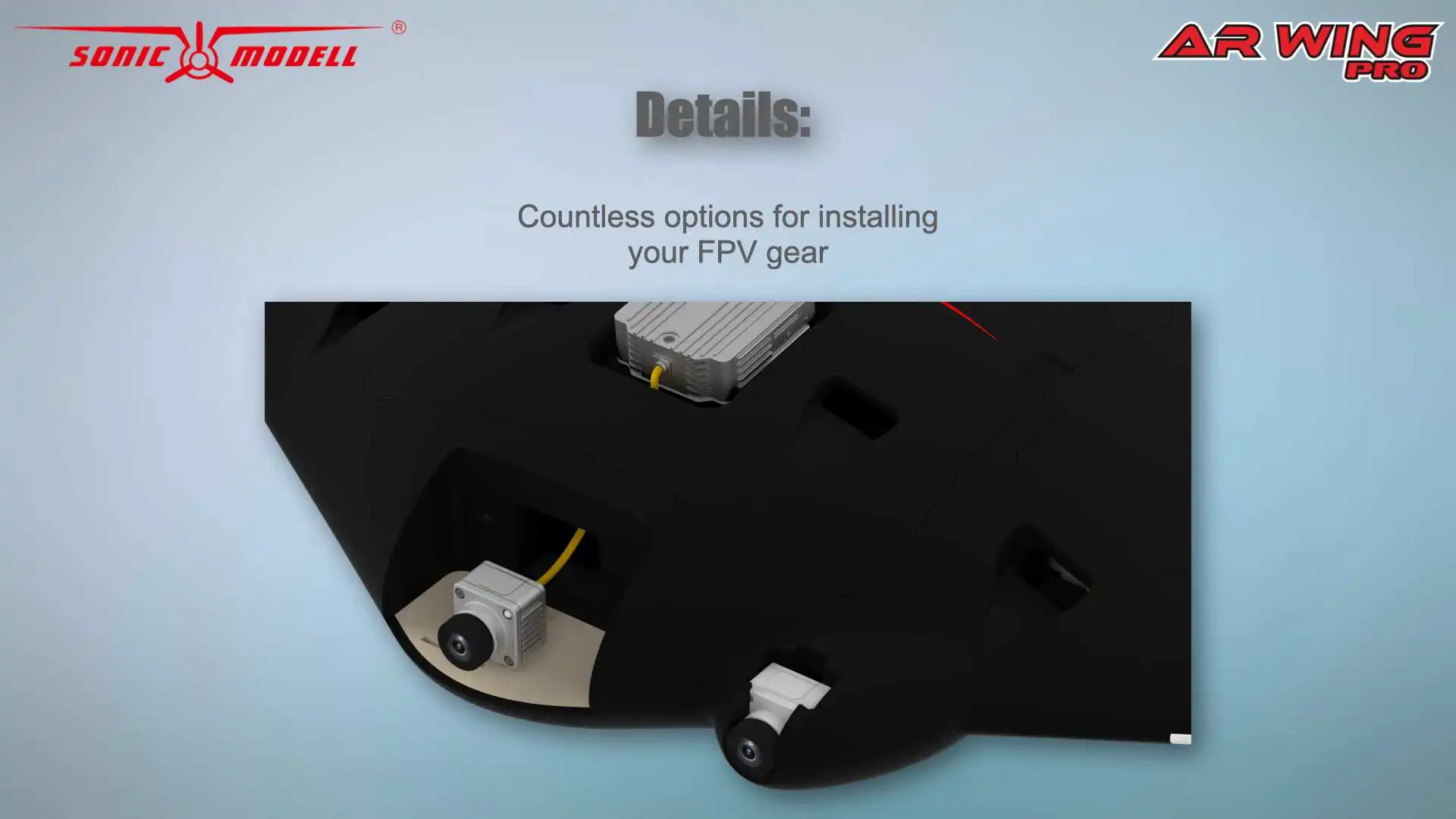

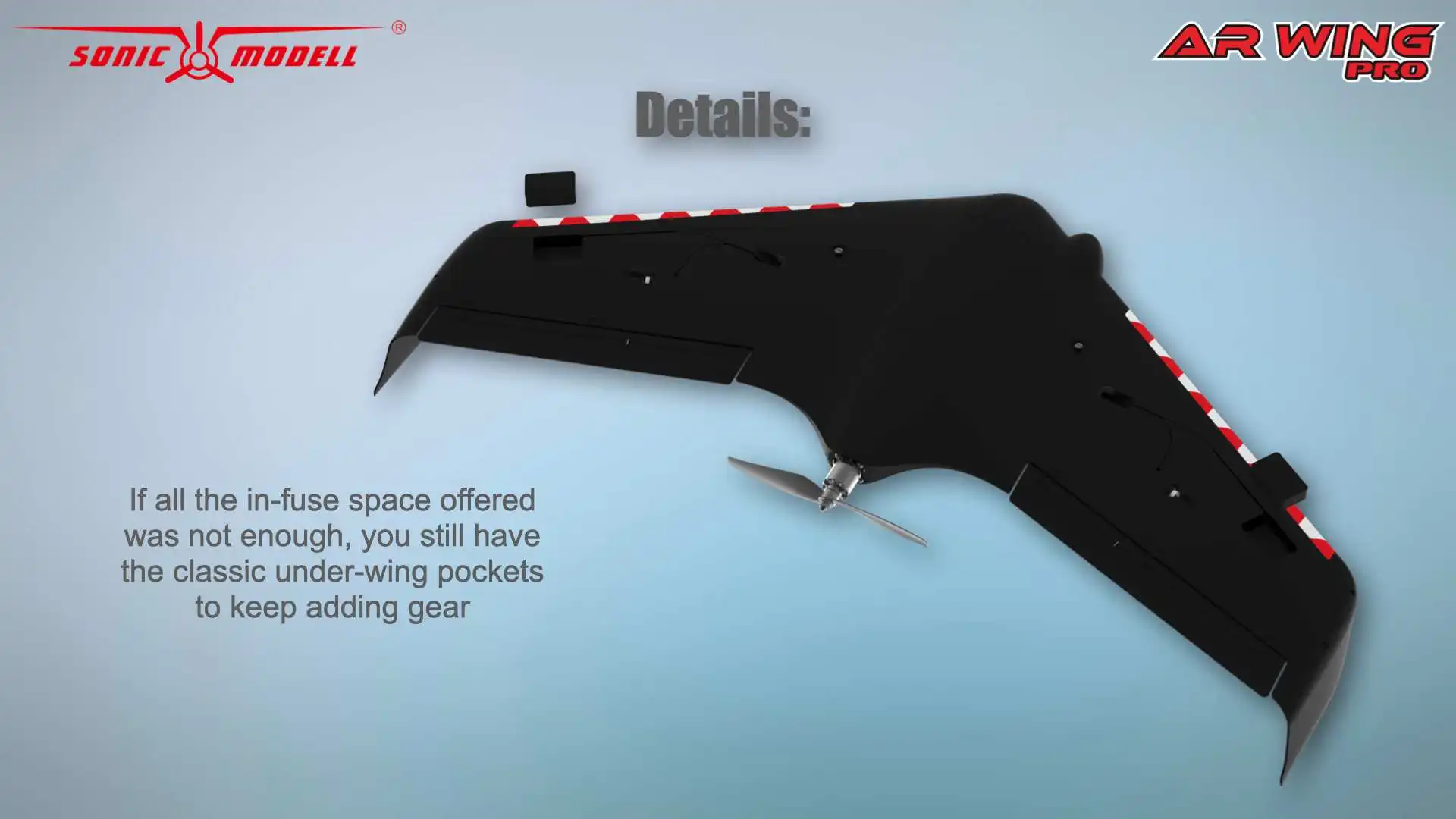

– Extra nose and side camera bay and main hatch that compatible with all FPV and AIO cameras in the market.

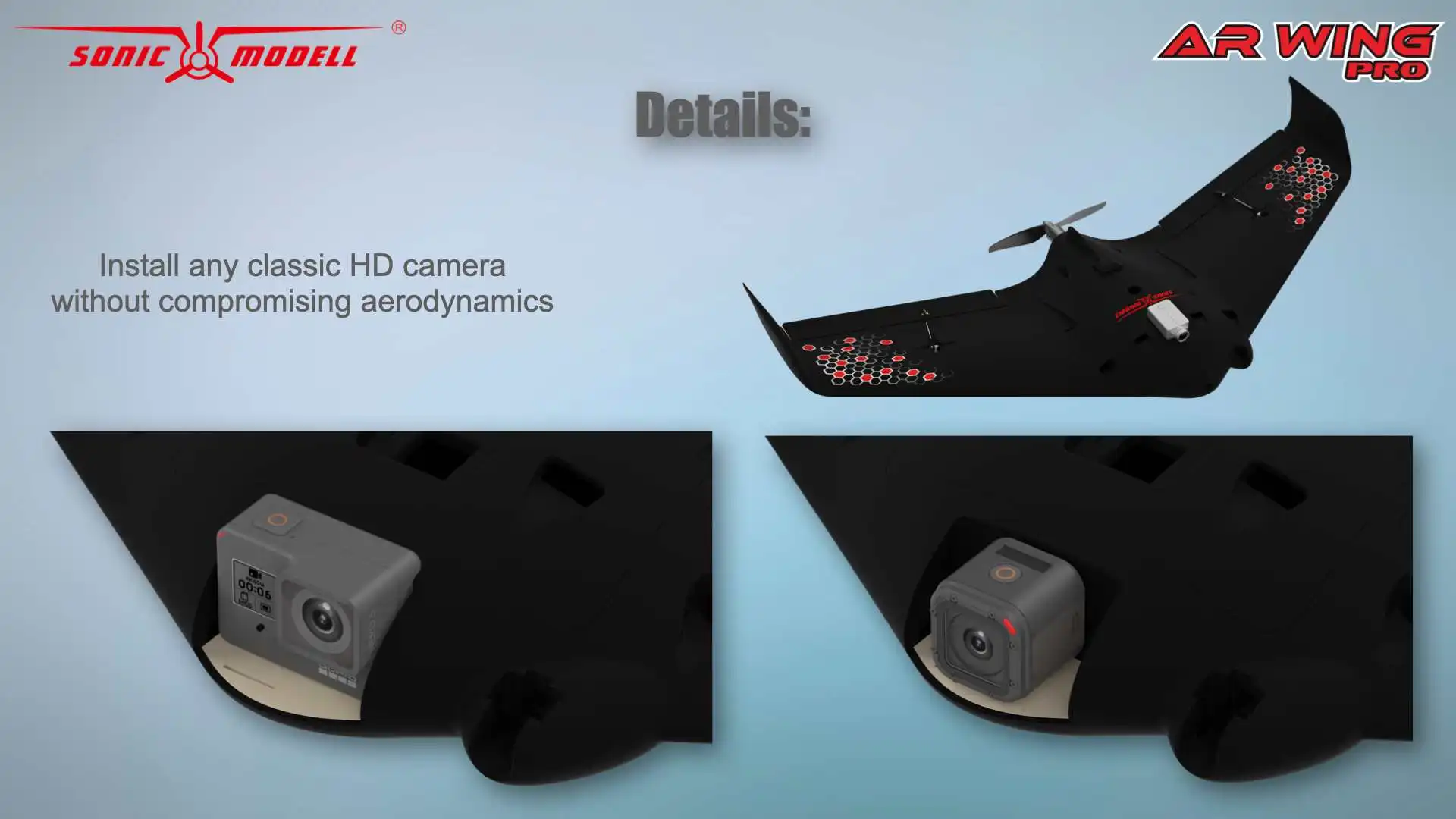

– Nose camera slot compatible with all HD Auction cameras (for Gopro, DJI, Runcam etc) in the market.

– Multiple tunnels inside all quipment bays, easy to layout wire between each bay.

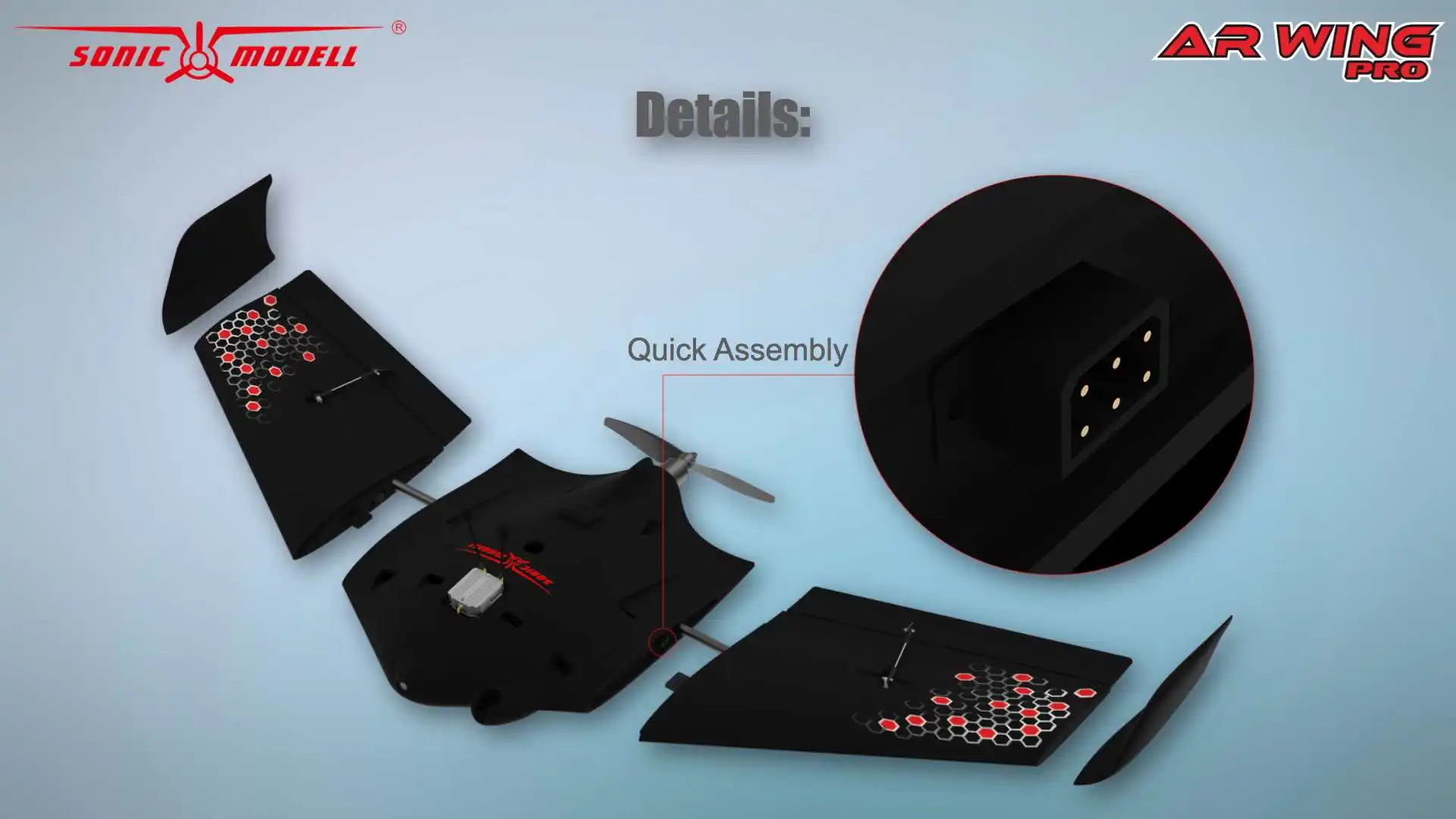

– Detachable main wing and wing tip, glue-free assembly, portable for outdoor flying.

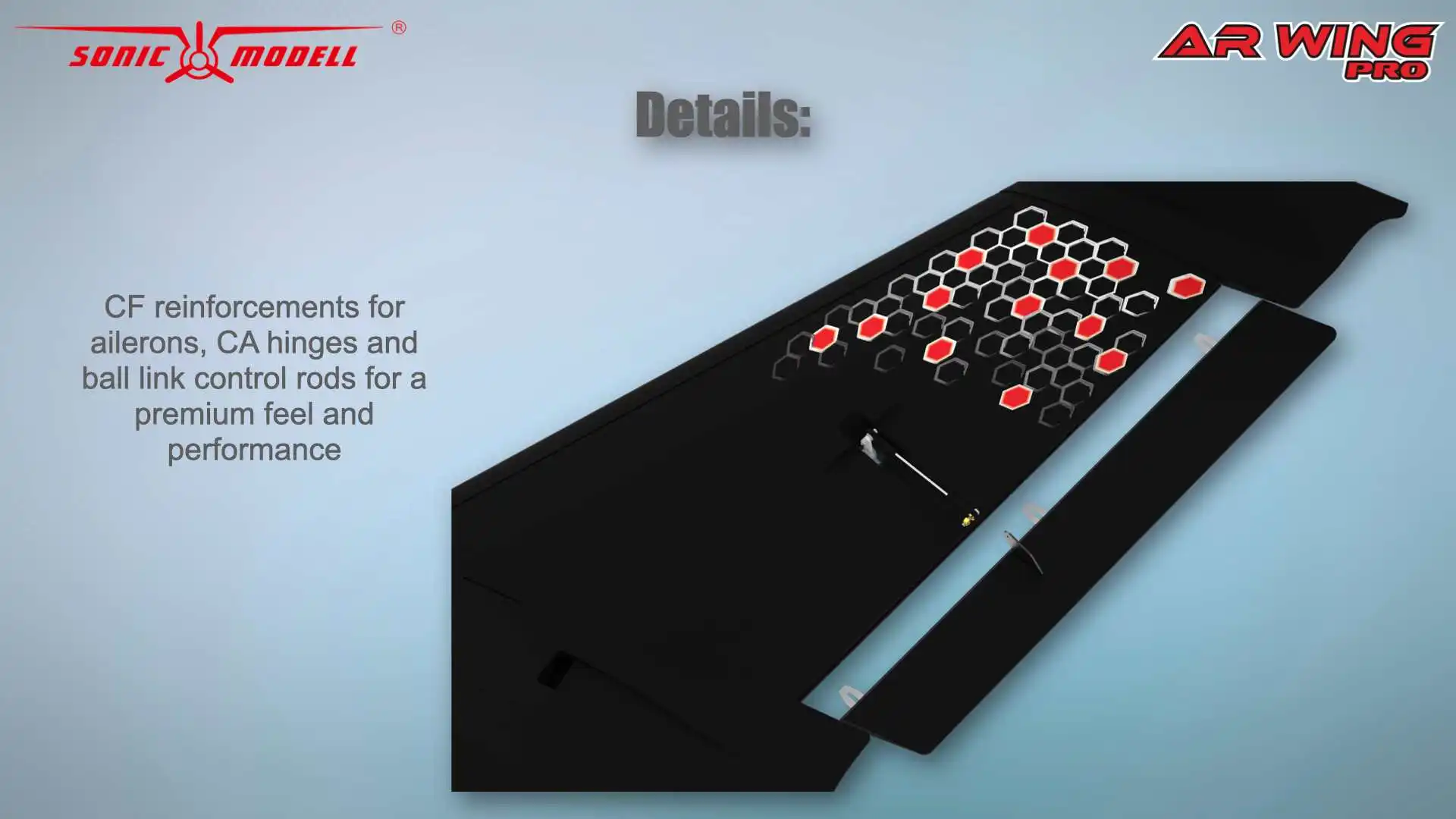

– Built-in CF rod in the ailerons will give precision and sharp action to your inputs.

– High accurate ball link control system brings agile and quick response in control.

– Special-designed “servo arm built-in” structure will protect your servo arm from impact.

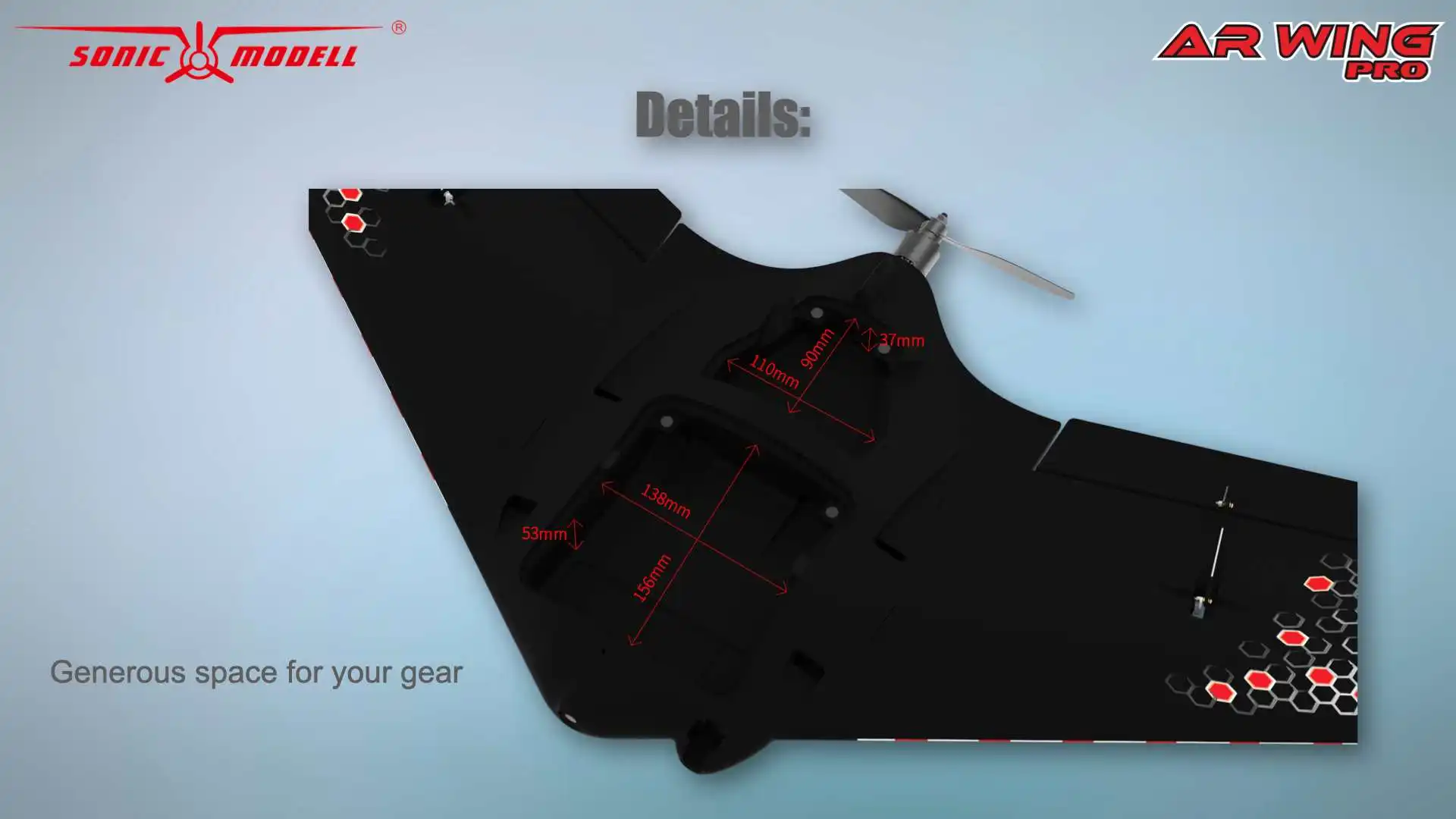

– Large battery bay for extended flight time and more rooms for various Flight Controller.

– Decent rear bay for ESC, isolate interference from other FPV equipment.

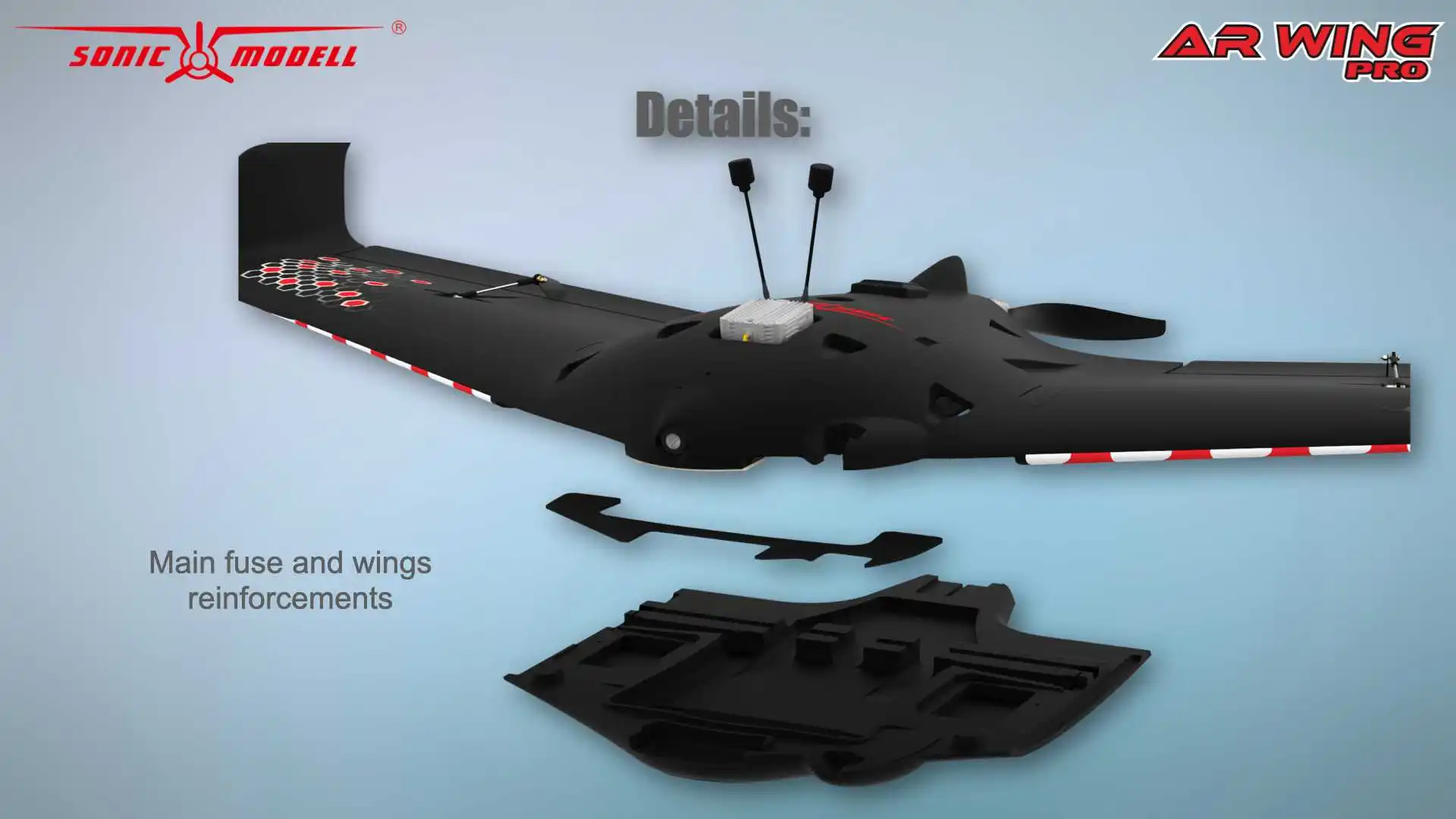

– Built-in plate inside fuselage for extra enhancement.

– Extra CA Hinges for DIY will bring you more stiff and agile control.

– Optimized air-cooling design will keep your gear safe from overheating.

KIT Includes:

SONICMODELL AR Wing Pro KIT with all hardware.

KIT Package Size: 42*31*15.5cm

KIT Package Weight: 1200g

Note: Motor,esc, servos, propeller, battery, charger, transmitter and receiver are not included.

PNP Includes:

SONICMODELL AR Wing Pro KIT with power combo(uninstalled motor, esc, servos, propeller, and hardware.)

PNP Package Size: 42*31*15.5cm

PNP Package Weight: 1500g

Note: Battery, charger, transmitter and receiver are not included.
