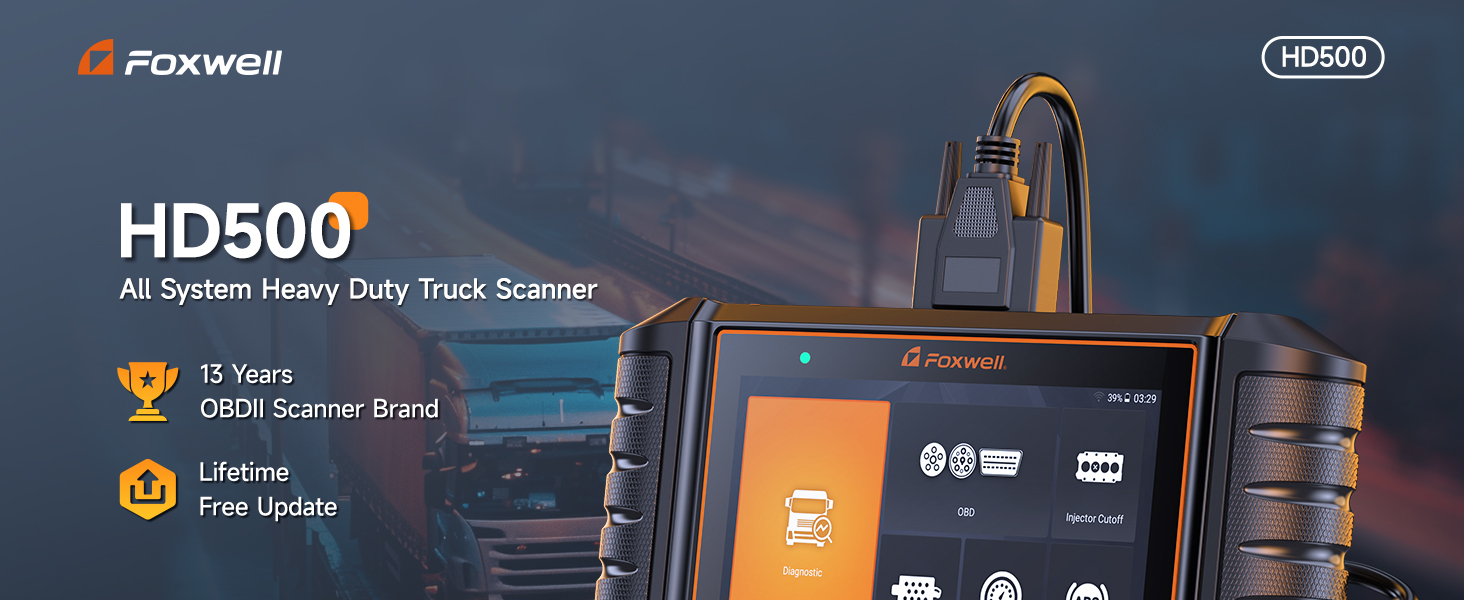

HD500 Heavy Duty Truck Scanner with DPF Regen/Injector Cutoff/Limit Setting, Full System Diesel Diagnostic Scan Tool for Cummins, Detroit, Caterpillar, Paccar, Hino & More Pickup Semi Trucks
$56.99
- 【Diesel Engines】HD500 heavy duty truck scanner is tailored to vehicles equipped with cummins. cat. detroit. paccar. international. hino and more engines. This diesel scan tool come with diverse adapters. including diesel 6 & 9 pin. CAT-9 pin. CAT-14 pin. 16 pin cable. It is engineered to deliver accurate and reliable diagnostics. ensuring compatibility and effective troubleshooting for your trucks. Tip: If your truck fault code is factory custom protocol. please enter the diagnostic menu. and then select the corresponding engine to test. so that your test data will be more accurate.(Please note that the HD500 does not have bidirectional and VGT calibration.)
- 【Advanced DPF Management】The longer a truck is in use. the more particles accumulate in the D.P.F and the more the D.P.F becomes clogged. affecting engine performance and emissions efficiency. This HD500 diesel scanner provides you with DPF regeneration. D.P.F reset. DPD. DPR status control and more functions to achieve efficient cleaning. optimise engine performance and prolong D.P.F life. Save maintenance costs by avoiding D.P.F replacement through regular D.P.F cleaning and D.P.F regeneration. All made easy with the HD500. Warm tips: the HD500 can’t do dpf function on Isuzu.
- 【Cylinder Cut-off Services】The cylinder cut-off test can diagnose engine failure problems. The HD500 heavy duty truck scan tool sends a command to the ECU to cut off the injector of a cylinder to check if the injector of that cylinder is not working properly. If the engine speed drops more. the better the cylinder works; if the speed drop is not obvious or does not drop then the cylinder may be faulty; touch the high-pressure pipe between the common rail tube to the injector with your hand. the stronger the pulsation. the better the injection effect. This diesel scanner provides clear guidance for maintenance.
- 【Speed Limit Reset & ABS】Limit setting enables you can check and set the engine speed and the vehicle road speed limit when the vehicle is stationary. which ensures driving safety. And this diesel scanner also can make you achieve a firm brake pedal by removing air from the ABS module. HD500 truck scanner helps you maintain commercial vehicle breakdowns at all times. saving you money efficiently and winning more business for you! Please note that the adjust the speed limit is supported by fewer vehicles (the cummins engine cannot support speed limit adjust). please confirm the vehicke VIN with us before purchase.
- 【Access All Major Systems with Ease】The HD500 heavy duty scanner truck diesel provides full diagnostic capabilities. covering the engine. ABS. SRS. EPB. Park Brake Controller. DPF. etc. Comes with full HD OBD/EOBD/ OBD2 service modes. including read codes. erase codes. live data. etc. Allows you to quickly identify issues and perform necessary solutions.
- 【For Commercial and Passenger Vehicles】The heavy truck scanner diagnostic tool supports heavy-duty trucks. pickup trucks. light trucks. buses. trailer. tractor. construction vehicles. agricultural vehicles. Compatible with multiple protocols such as J1587. J1939. J1708. J27145. ISO9141-2. ISO14230-2. ISO15765-4. !!Note!!: Alison transmission are not currently supported and are being developed.
- 【Maximize Your Investment】The truck diagnostic scanner provides lifetime updates to keep your device compatible with the latest models and diagnostic features. Dedicated technical support team available for assistance to ensure a seamless experience. The coverage and functions will be vary on different car conditions. please check them before purchase.
| Model | HD500 |
|---|---|
| Item Weight | 1.91 pounds |
| Package Dimensions | 10.59 x 6.18 x 4.37 inches |
| Item model number | HD500 |
| Batteries | 1 Lithium Ion batteries required. (included) |
| Manufacturer Part Number | HD500 |
